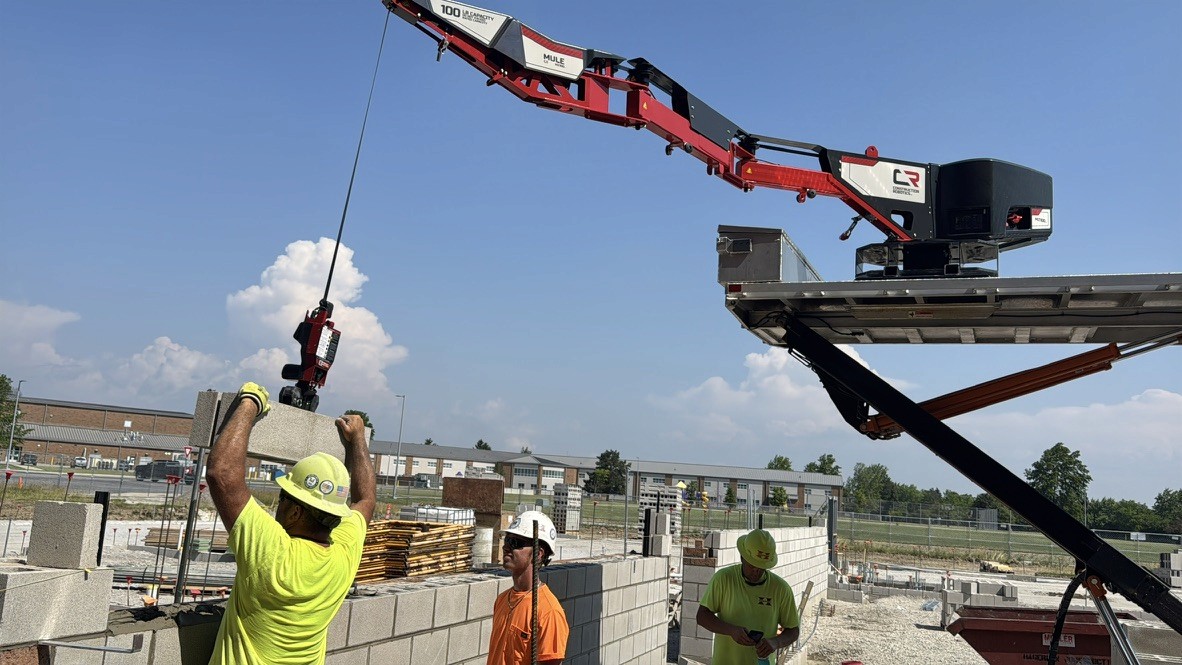

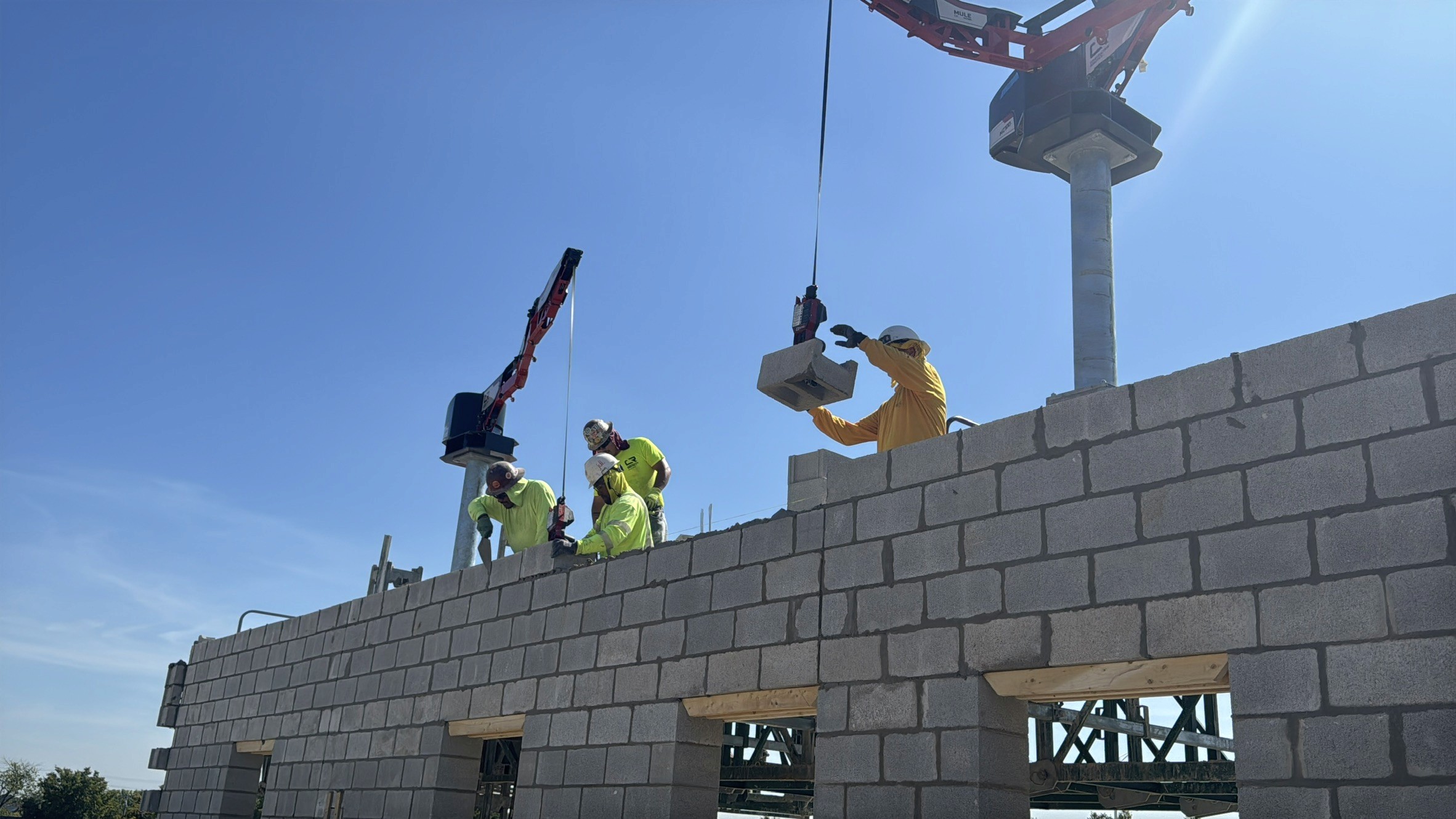

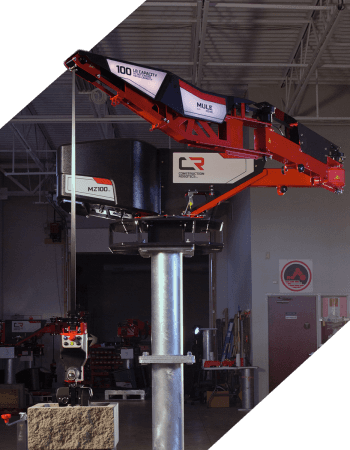

Featuring a versatile and battery-powered design, the MZ100 is the latest addition to the MULE product family to accelerate block laying and enhance ergonomics on the jobsite. The machine is fully weather-proof to withstand outdoor construction work but is also compact enough to accommodate interior work.
BUILD SMARTER, FASTER, AND SAFER.
ENHANCE PRODUCTIVITY

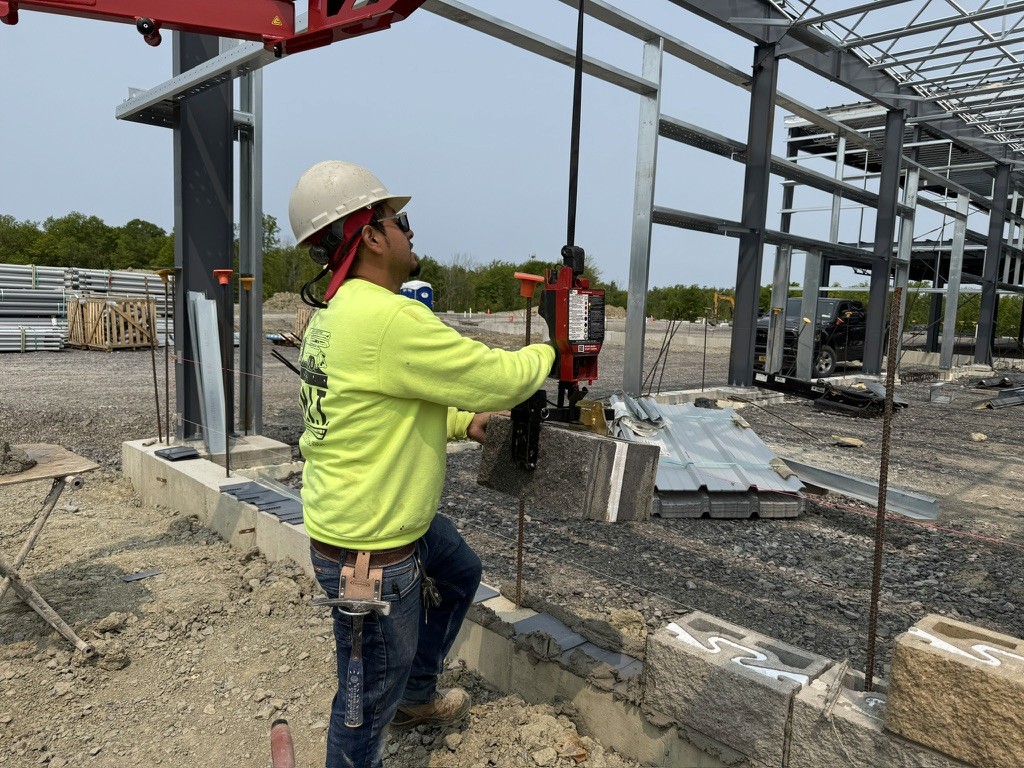

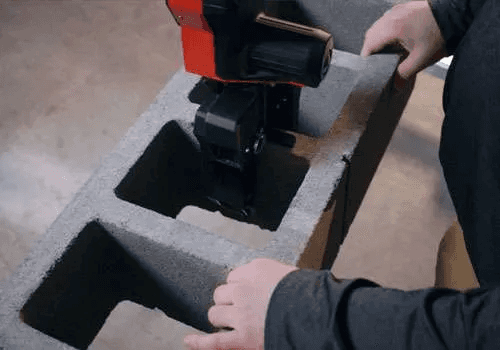

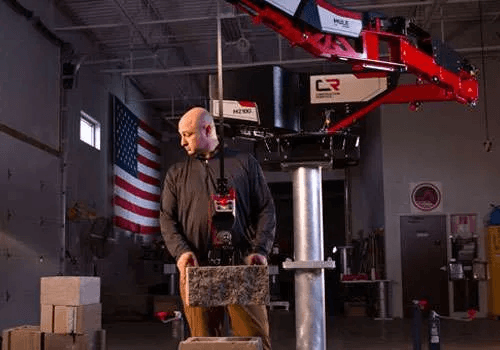

The MULE MZ100 grabs, lifts, and makes materials up to 100 pounds feel virtually weightless. One mason can lift and install heavy material with ease, significantly increasing production.
IMPROVE SAFETY
The MULE MZ100 minimizes the risk of on-site injuries and reduces the physical demands on the job, leading to a more satisfied workforce, lower turnover, and longer careers.
SIMPLE OPERATION

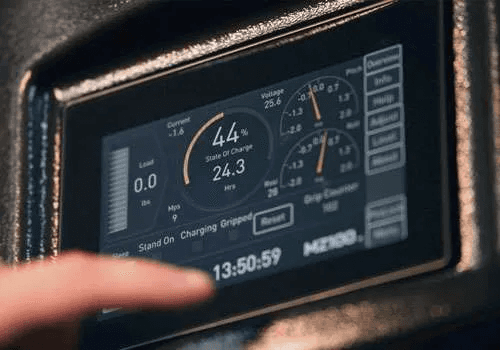

From its quick startup to intuitive learning curve to easy transport, the MULE MZ100 is extraordinarily operator-friendly.
ULTIMATE PORTABILITY

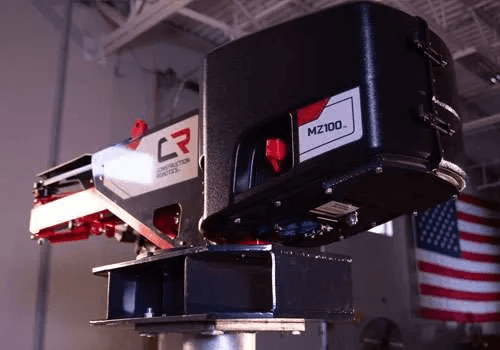

Powered by a single 24V lithium-ion battery, the MULE MZ100 delivers up to 32 hours of continuous operation.
EFFICIENT RECHARGING

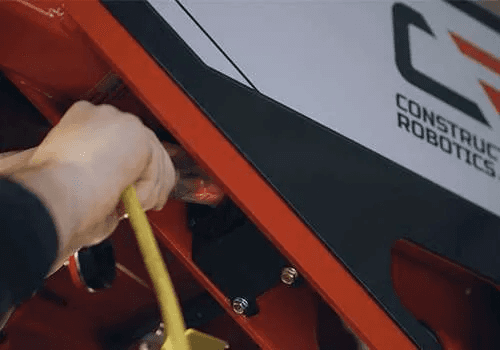

Recharge the battery with a standard extension cord. Even 30 minutes of charging delivers hours of productivity.
BOOST PROFITABILITY
The MZ100 decreases per-block costs and contributes to lower insurance rates due to fewer workers’ compensation claims.

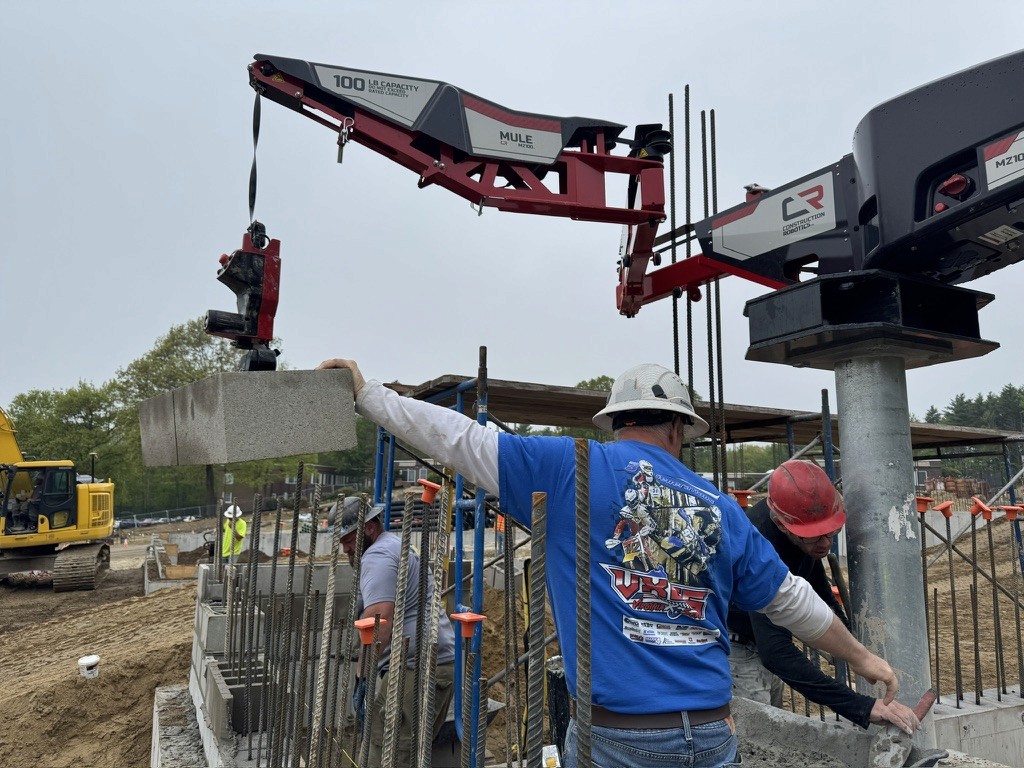

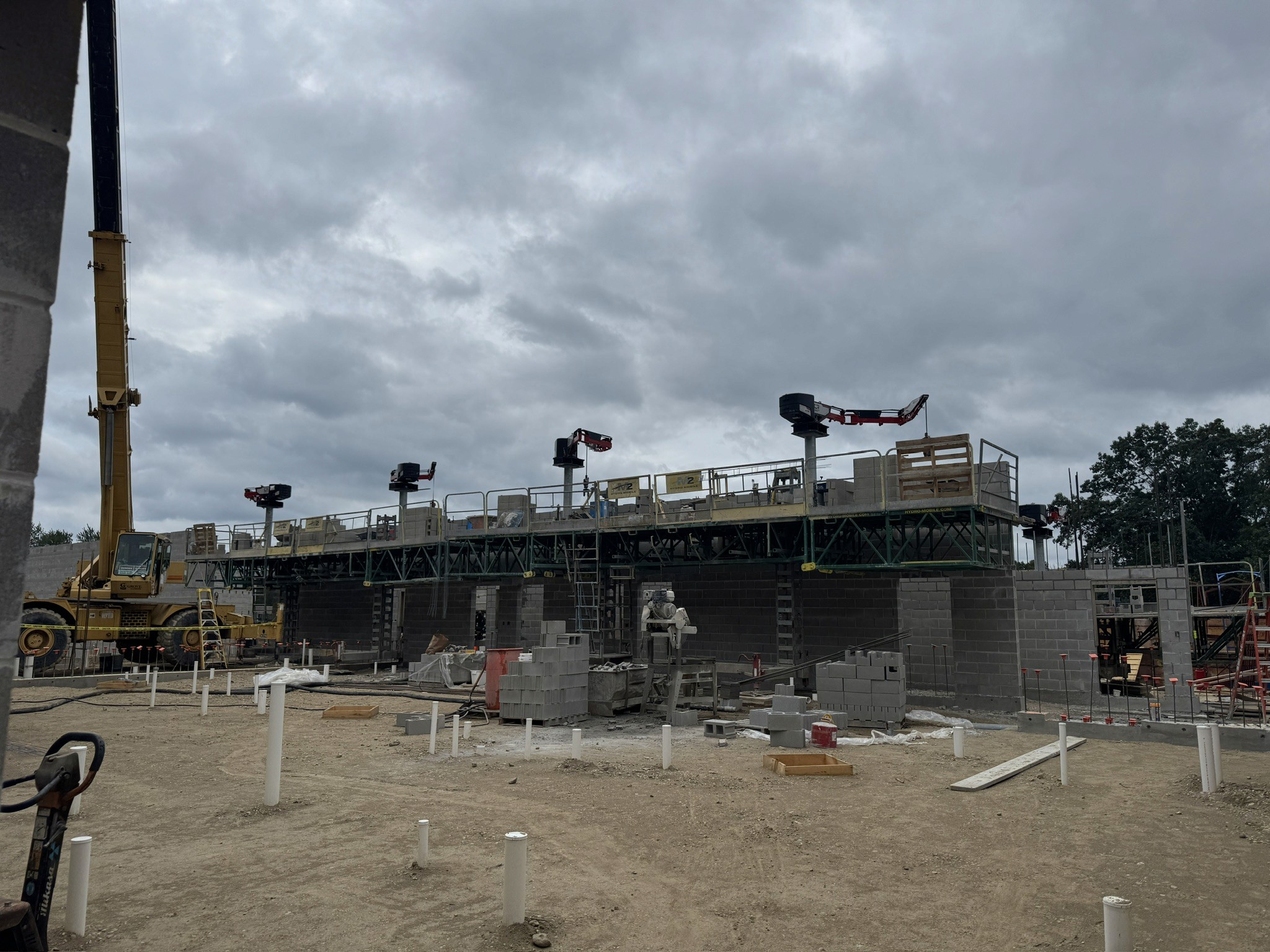

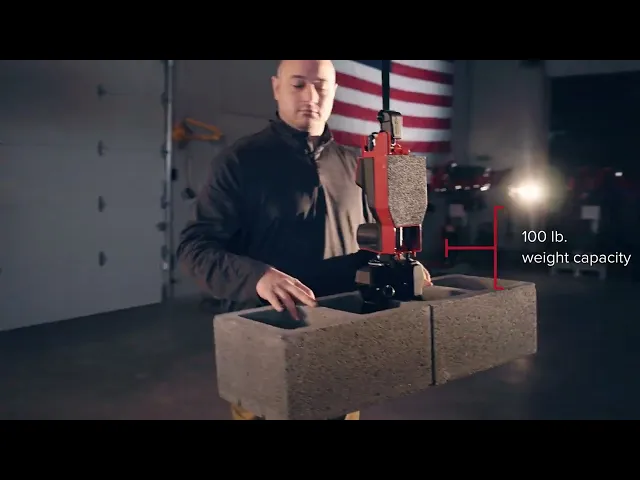

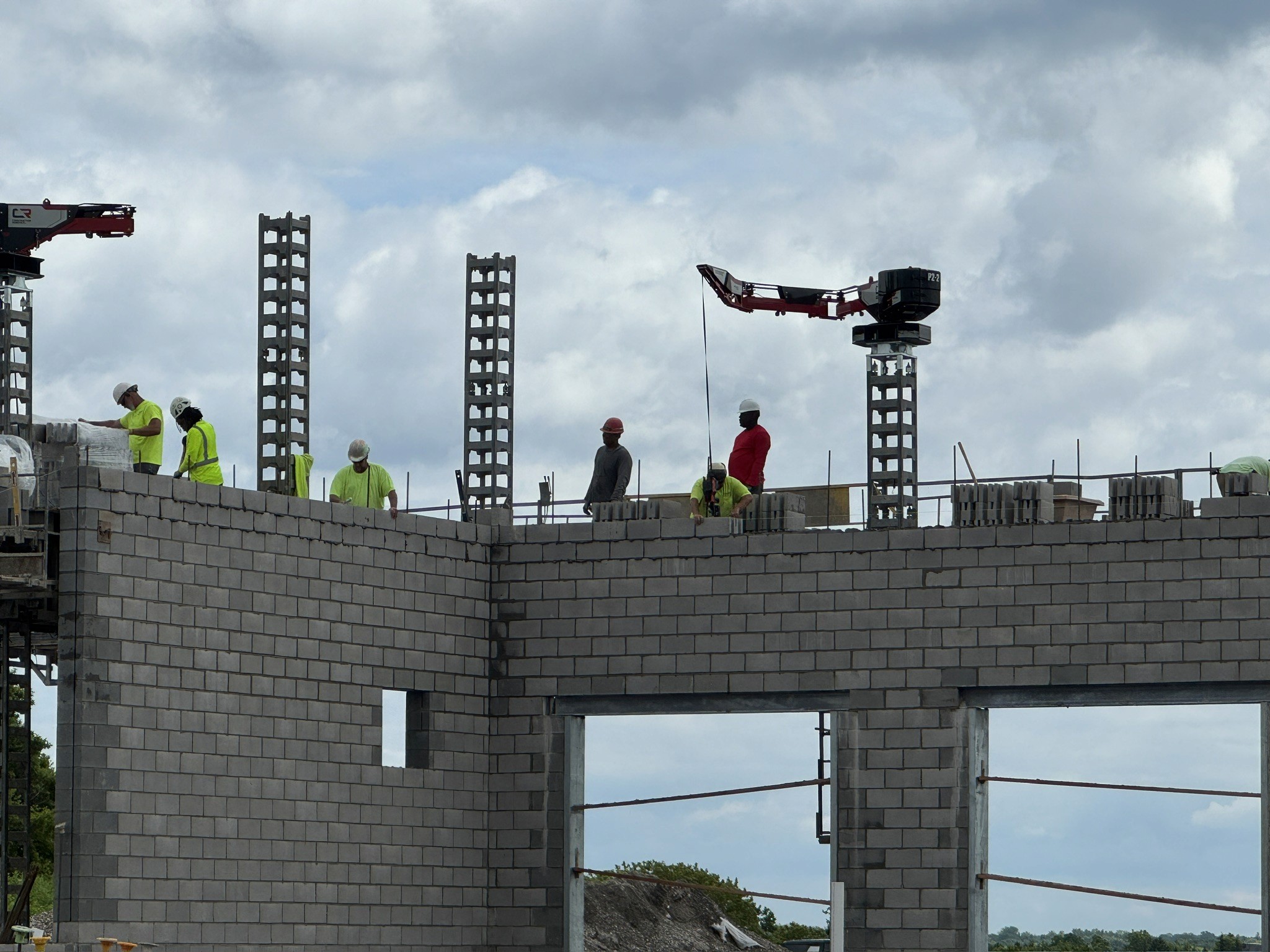

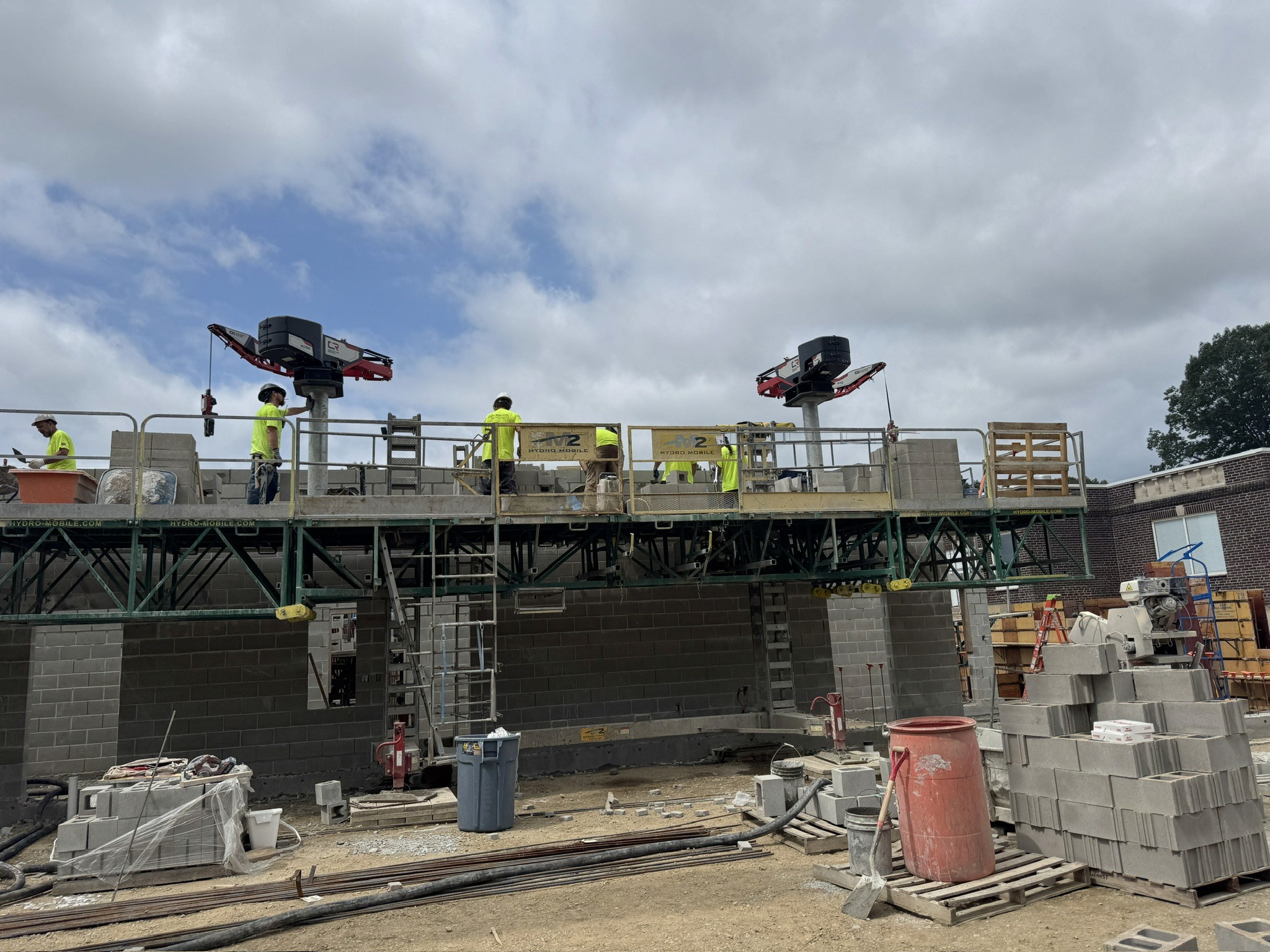

THE MULE MZ100 IN ACTION.
GET EQUIPMENT FINANCING
Explore flexible financing plans from JLG Financial®. LEAF Commercial Capital, Inc., a subsidiary of M&T Bank.
SPECIFICATIONS AND CONFIGURATIONS
Machine Weight
809 lb. / 367 kg
Max Lifting Capacity
100 lb. / 45 kg
Reach Radius
12 ft. / 3.65 m
Max Belt Length From Arm
20 ft. / 6.09 m
Extended System Length
14 ft. 7 in. / 4.44 m
Height
2 ft. 7 in. / 0.78 m
Width
1 ft. 10 in. / 0.81 m
Stowed Length
6 ft. 11 in. / 2.10 m
Stowed Width
2 ft. 4 in. / 0.71 m
Head Height Clearance
2 ft. 2 in. / 0.66 m
Battery
24V Lithium Ion, 80Ah
Battery Capacity
Up to 32 hours of continuous operation
Battery Charging
Fully charged in as little as 3.5 hours
Expected Battery Life
Rated for up to 10 years*
Lifting Cycles Per Charge
5,000+
Belt Speed
Max 0.7 m/s
*Depending on the rate of machine use and proper battery maintenance.
