ML150
MULE (Material Unit Lift Enhancer) is lift-assist equipment designed and built to handle and place heavy material on construction sites. It improves the safety and efficiency of your whole team.
BUILD SMARTER, FASTER, AND SAFER.
ENHANCE PRODUCTIVITY

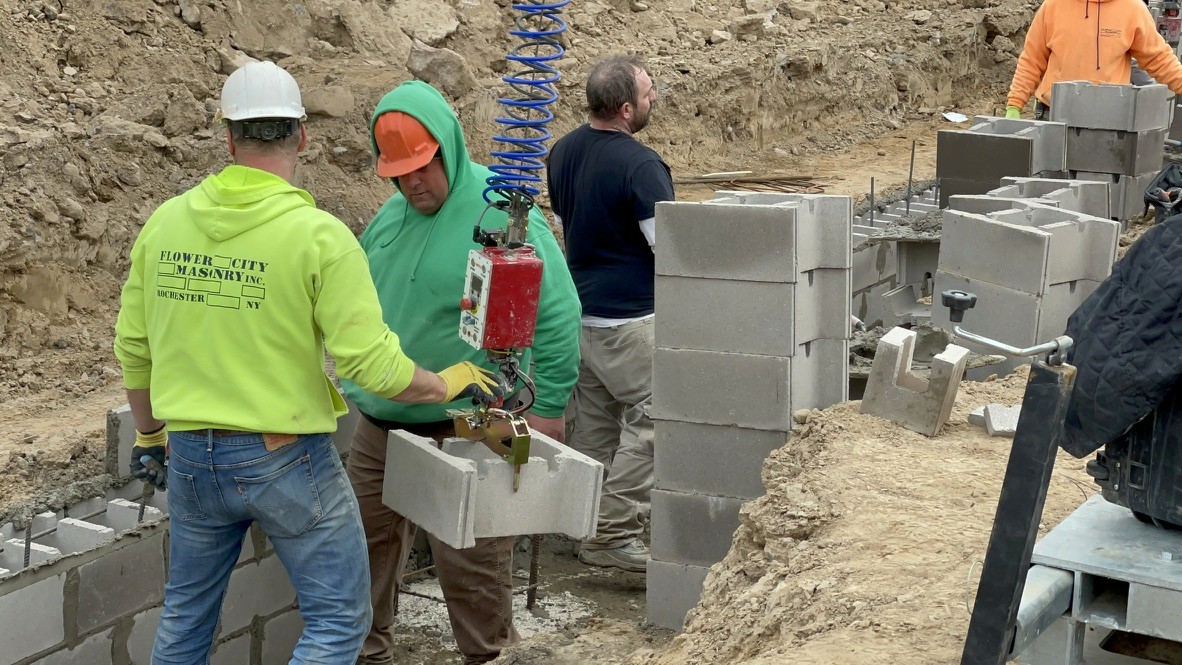

The MULE ML150 grabs, lifts, and makes materials up to 200 pounds feel virtually weightless. One worker can lift and install heavy material with ease, significantly increasing production.
IMPROVE SAFETY
The MULE ML150 minimizes the risk of on-site injuries and reduces the physical demands on the job, leading to a more satisfied workforce, lower turnover, and longer careers.
SIMPLE OPERATION
From its quick startup to intuitive learning curve to easy transport, the MULE ML150 is extraordinarily operator-friendly.
ULTIMATE PORTABILITY

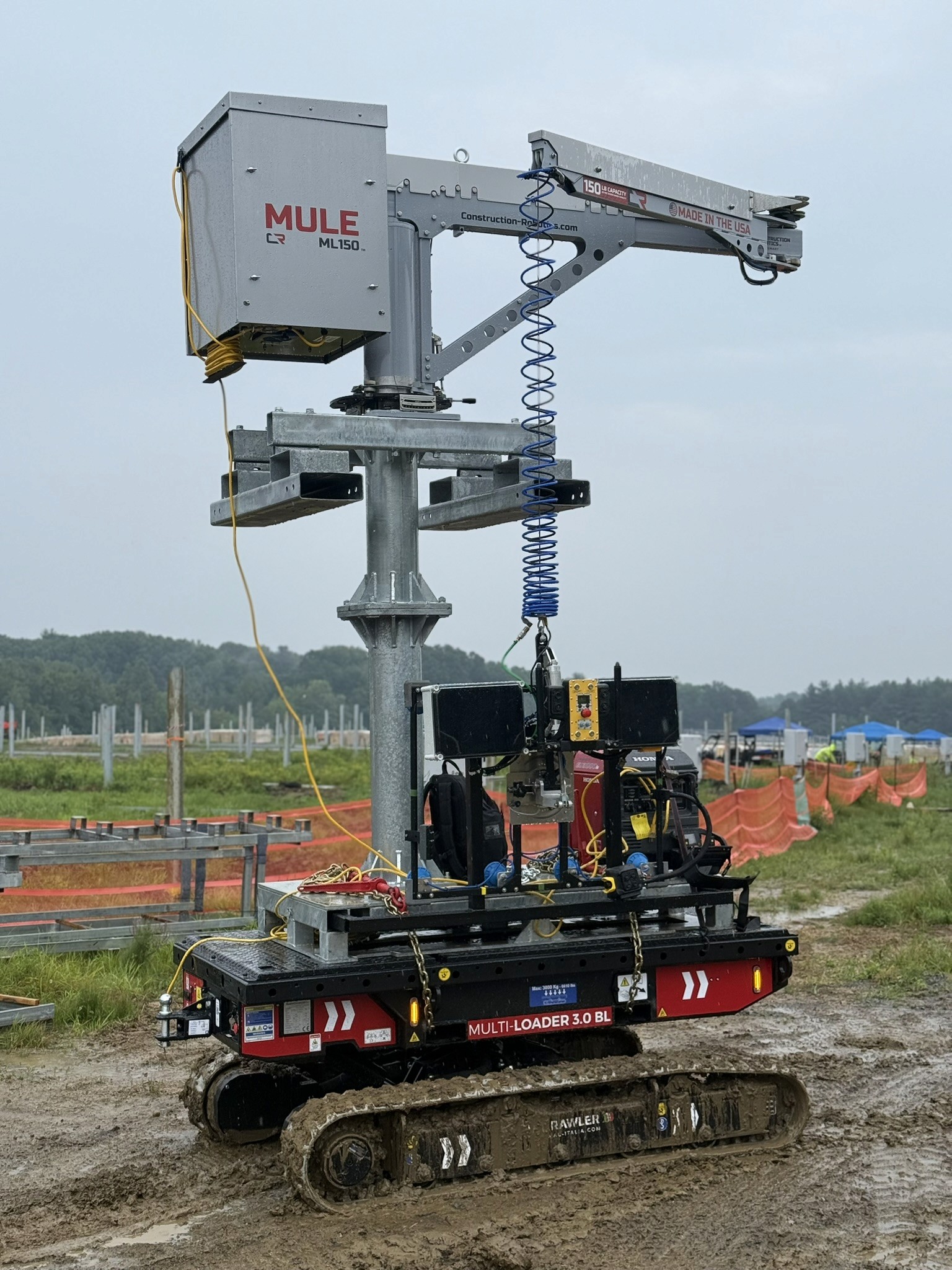

Designed to work as you work, the ML150 has multiple bases and attachments making it easy to incorporate into your existing operation.
110 POWER
The ML150 runs off of 110 power making it work in remote areas by using an inverter generator.
BOOST PROFITABILITY
The ML150 decreases per-unit costs and contributes to lower insurance rates due to fewer workers’ compensation claims.

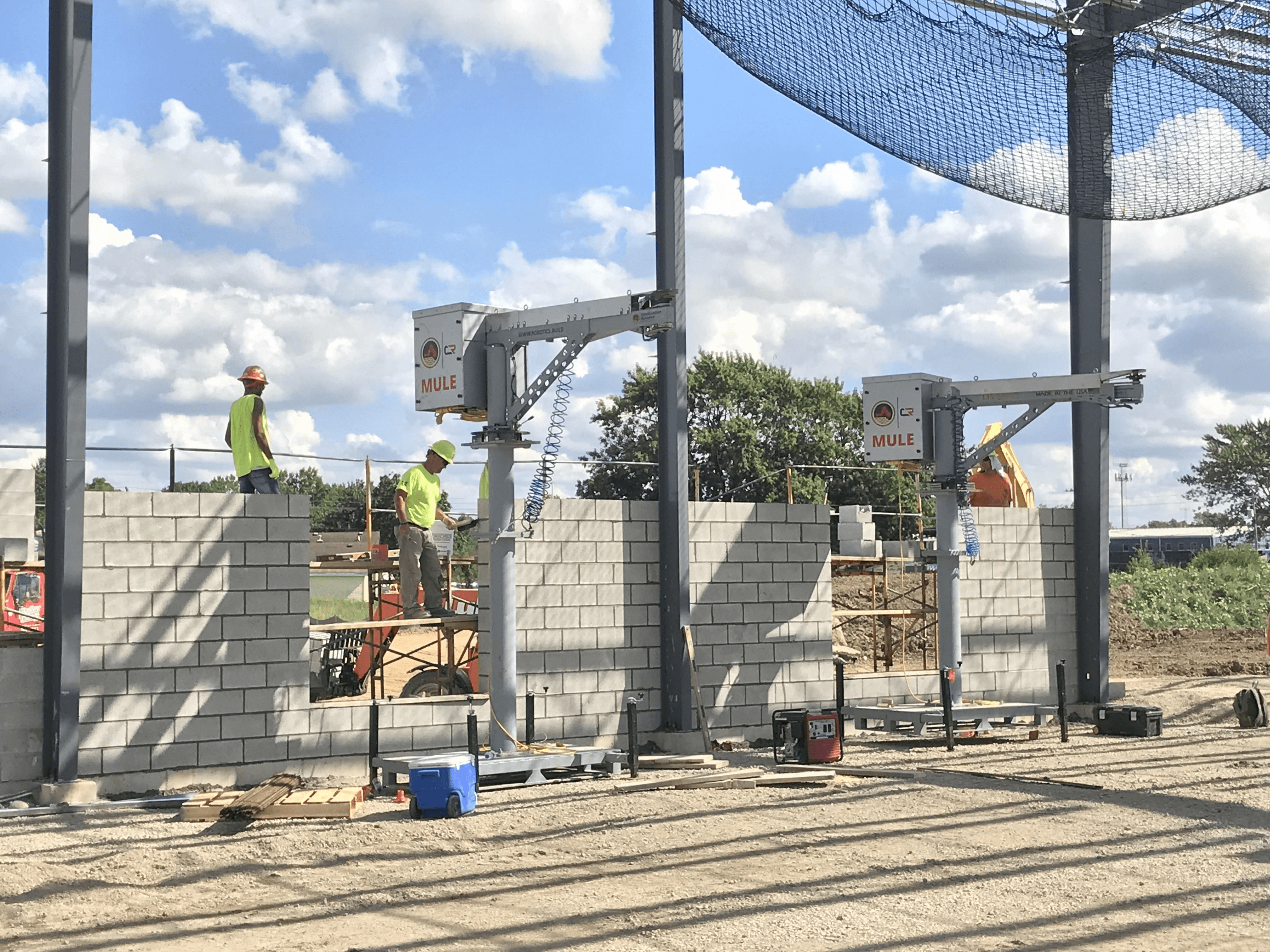

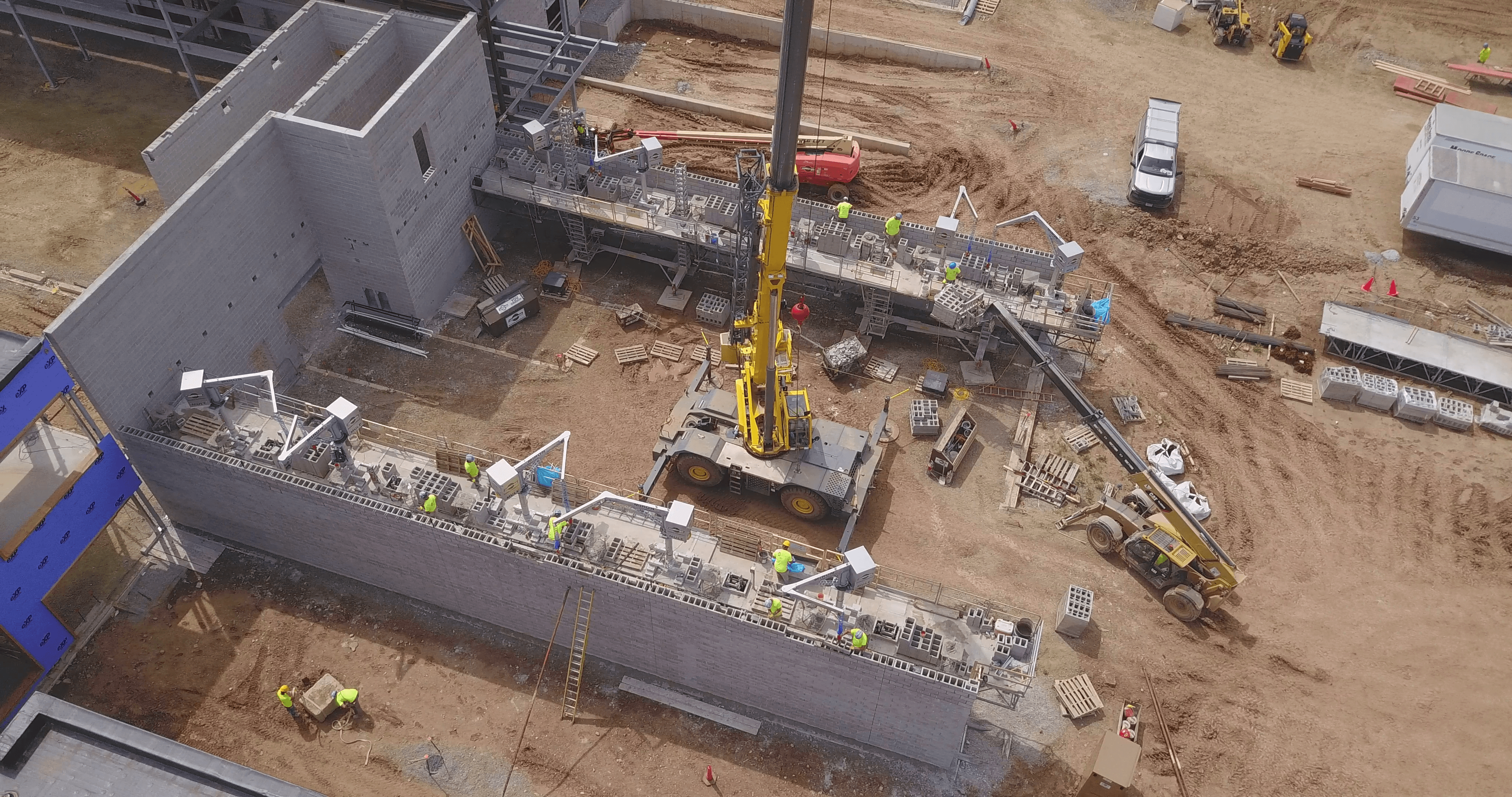

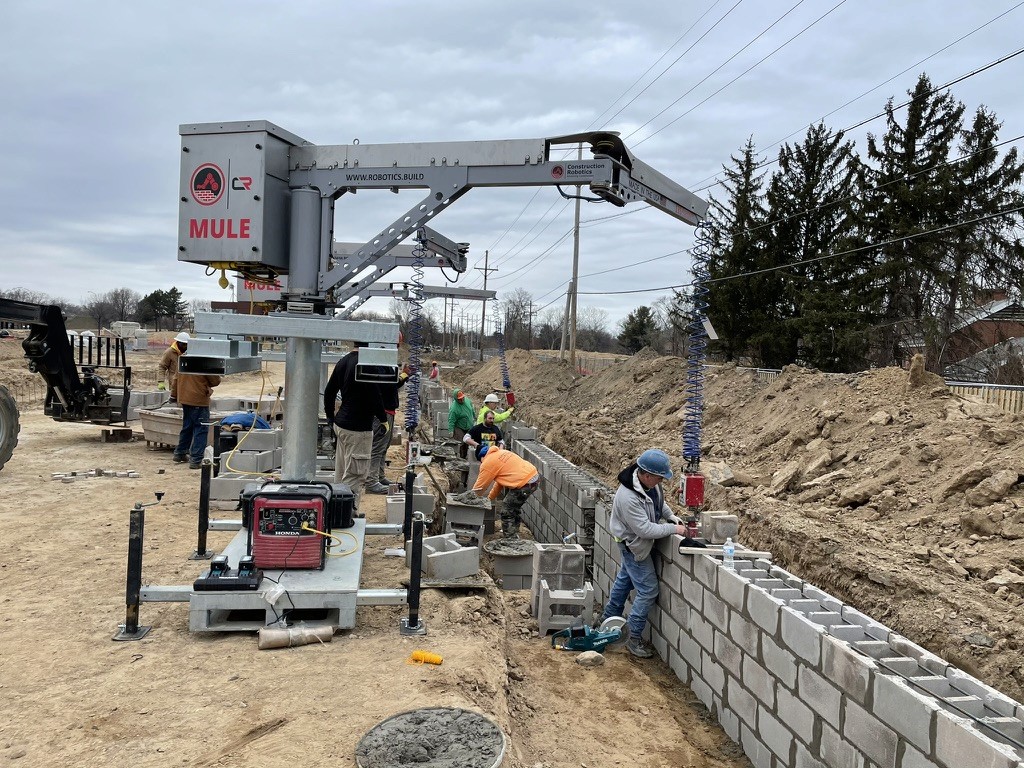

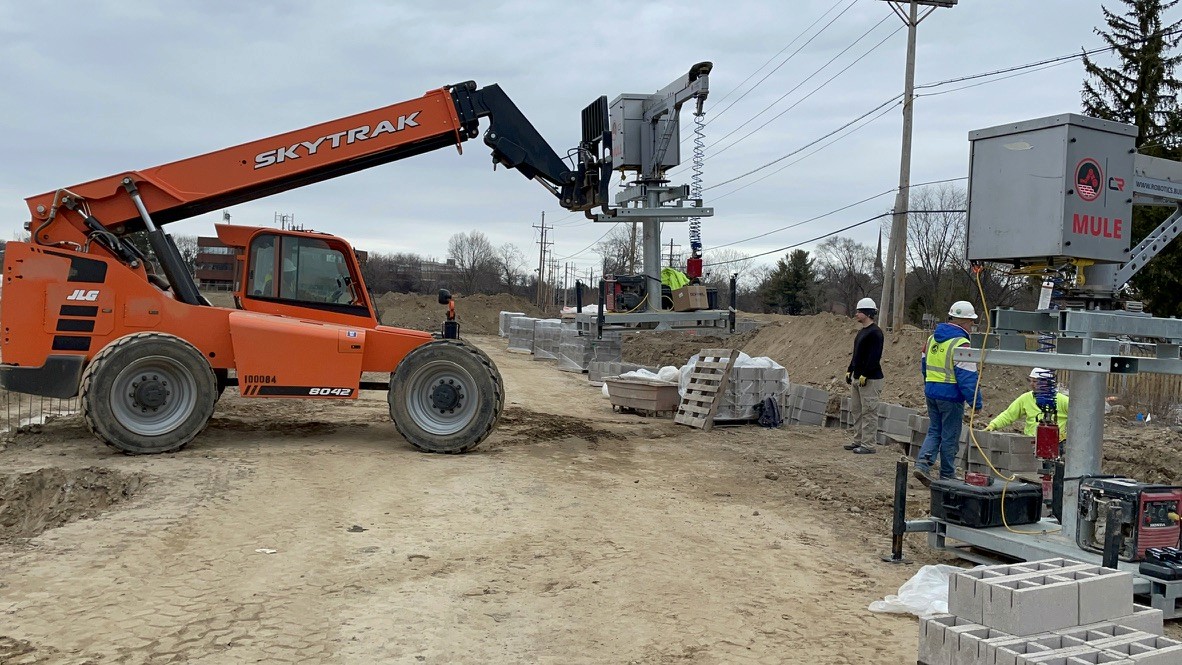

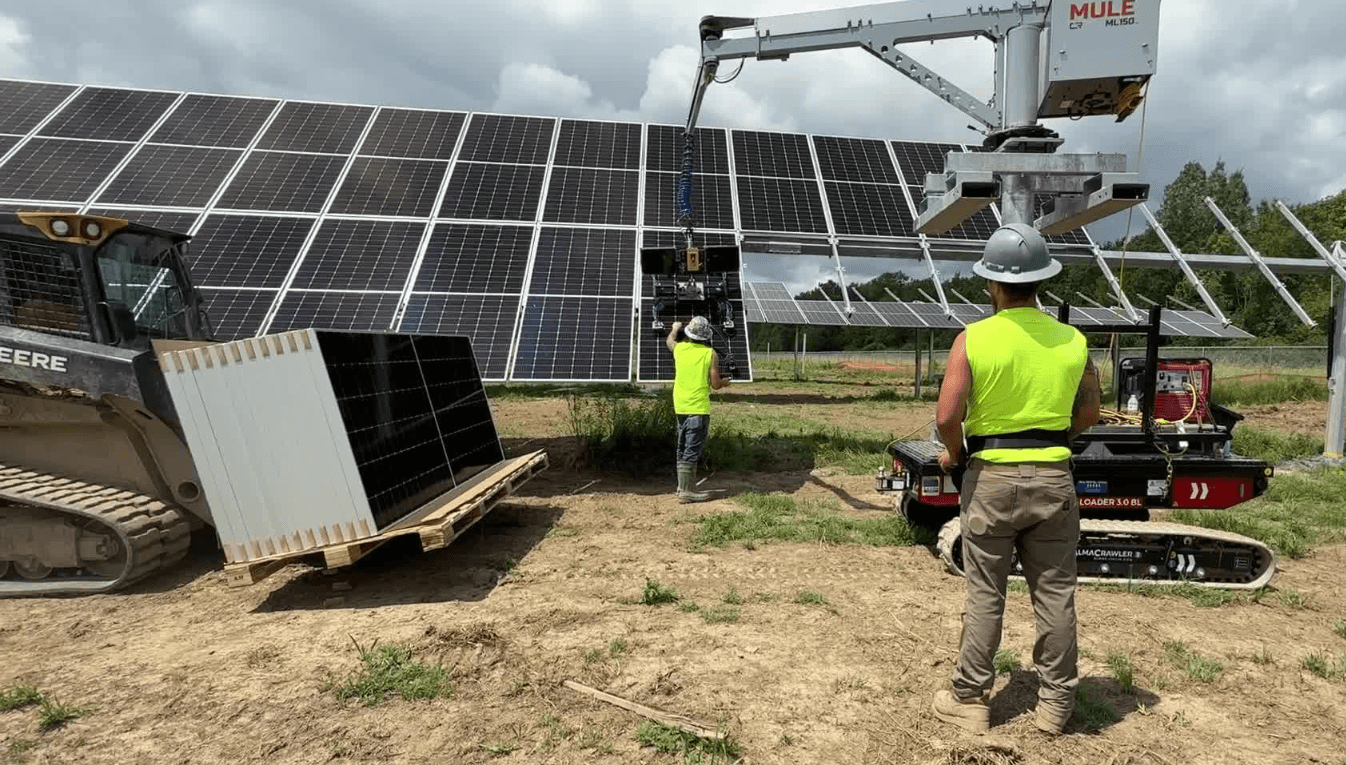

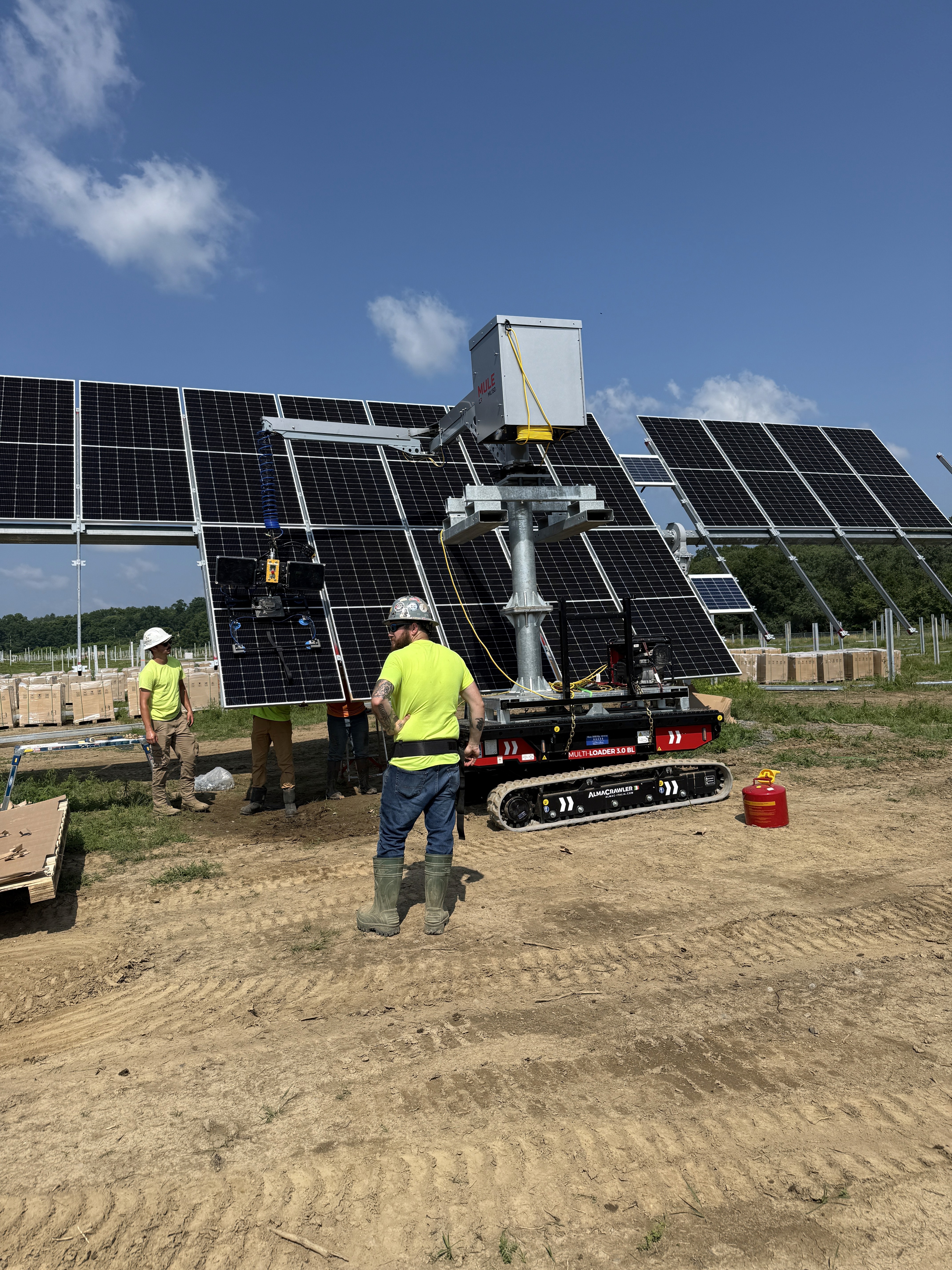

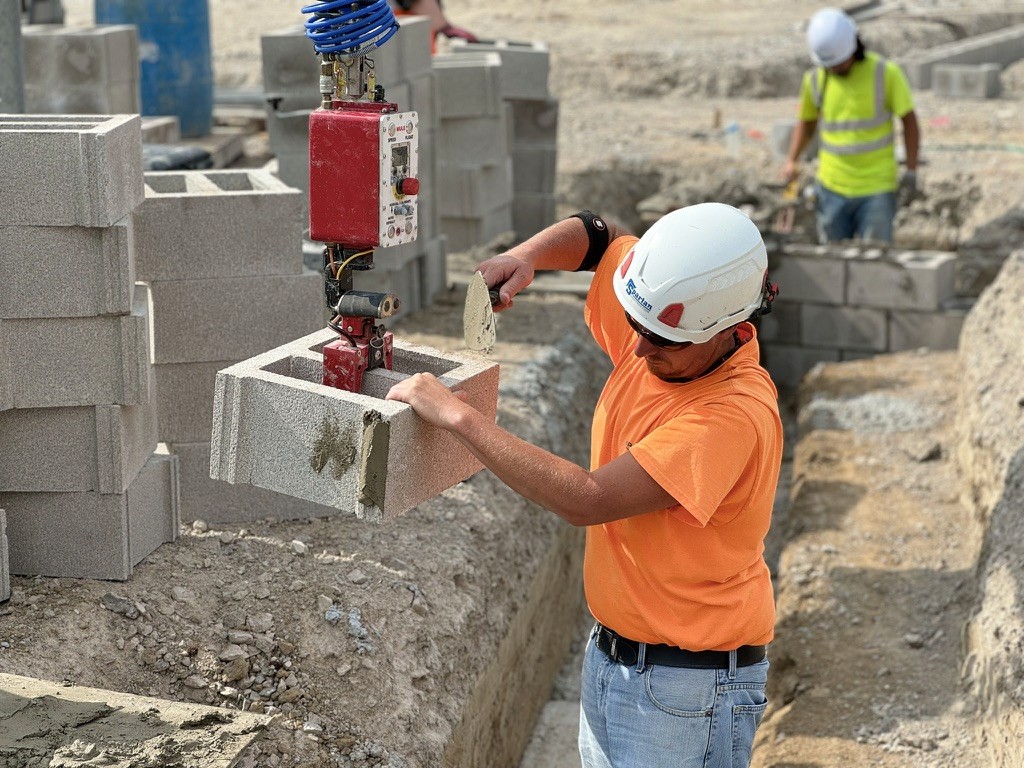

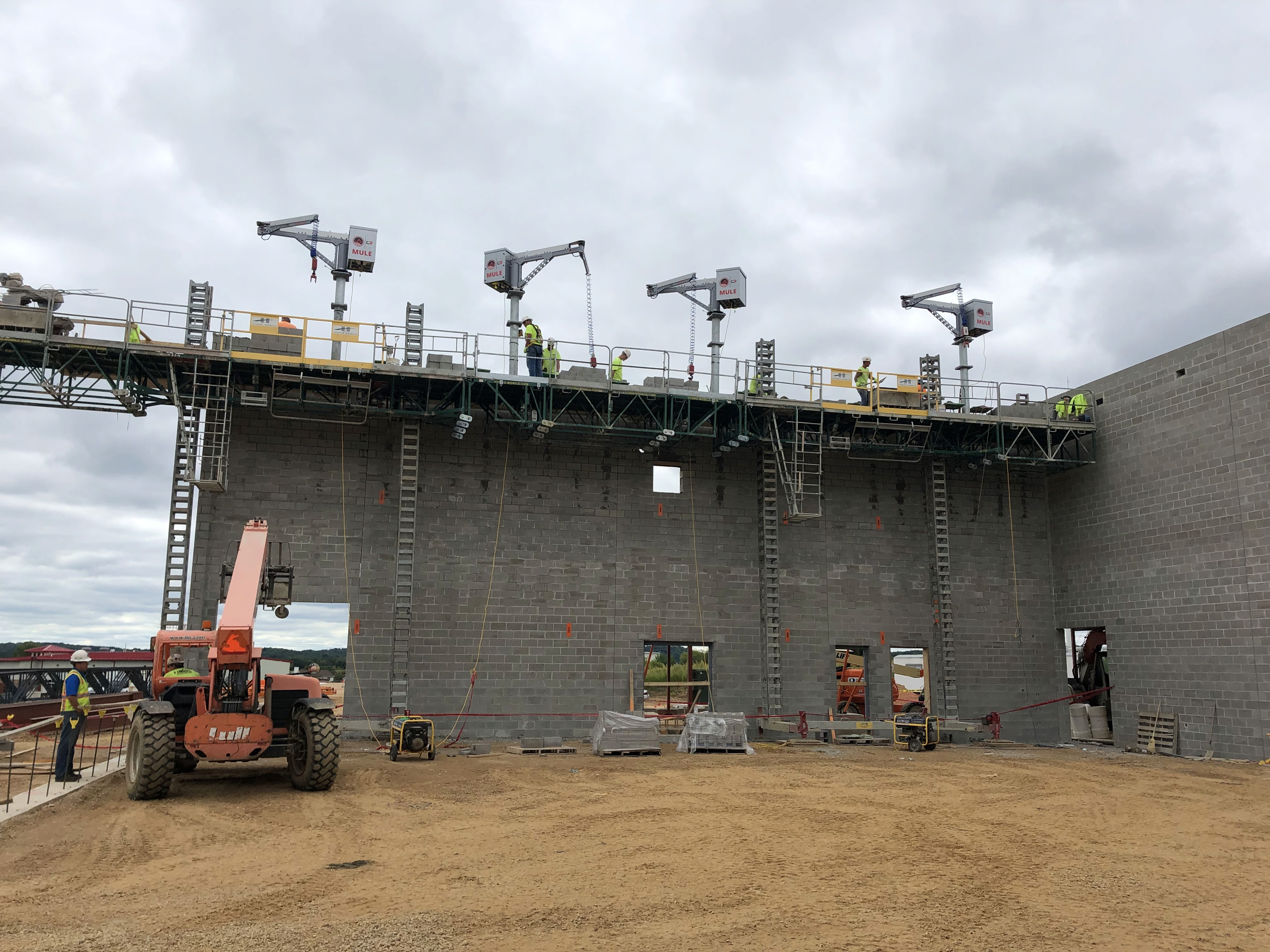

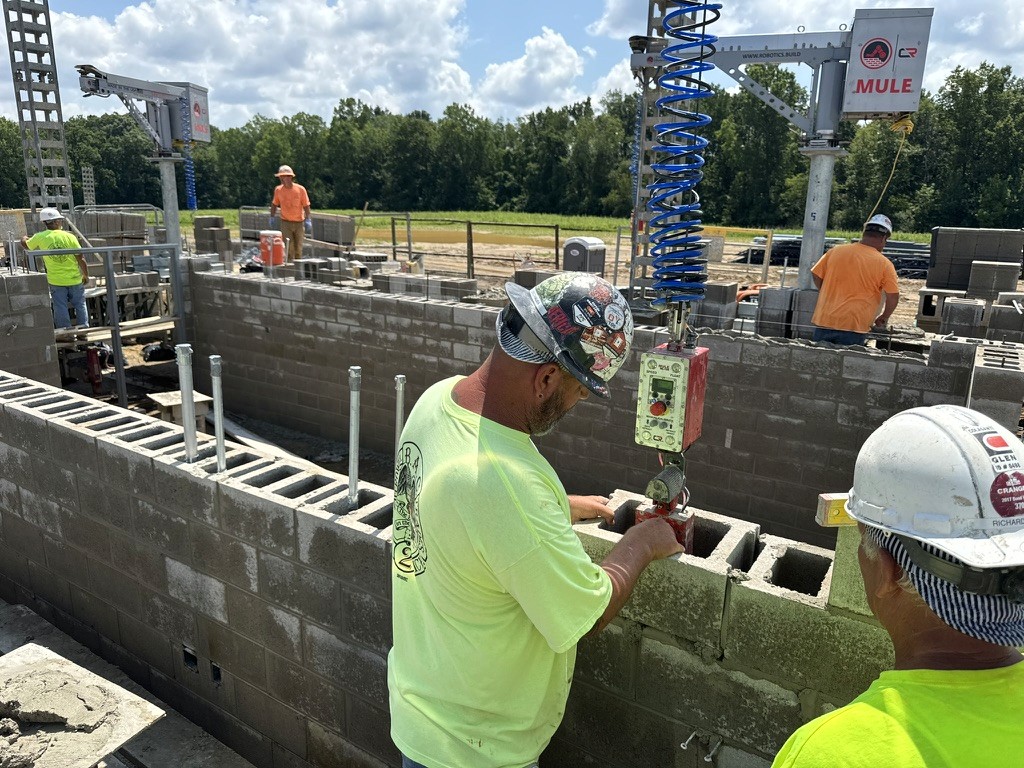

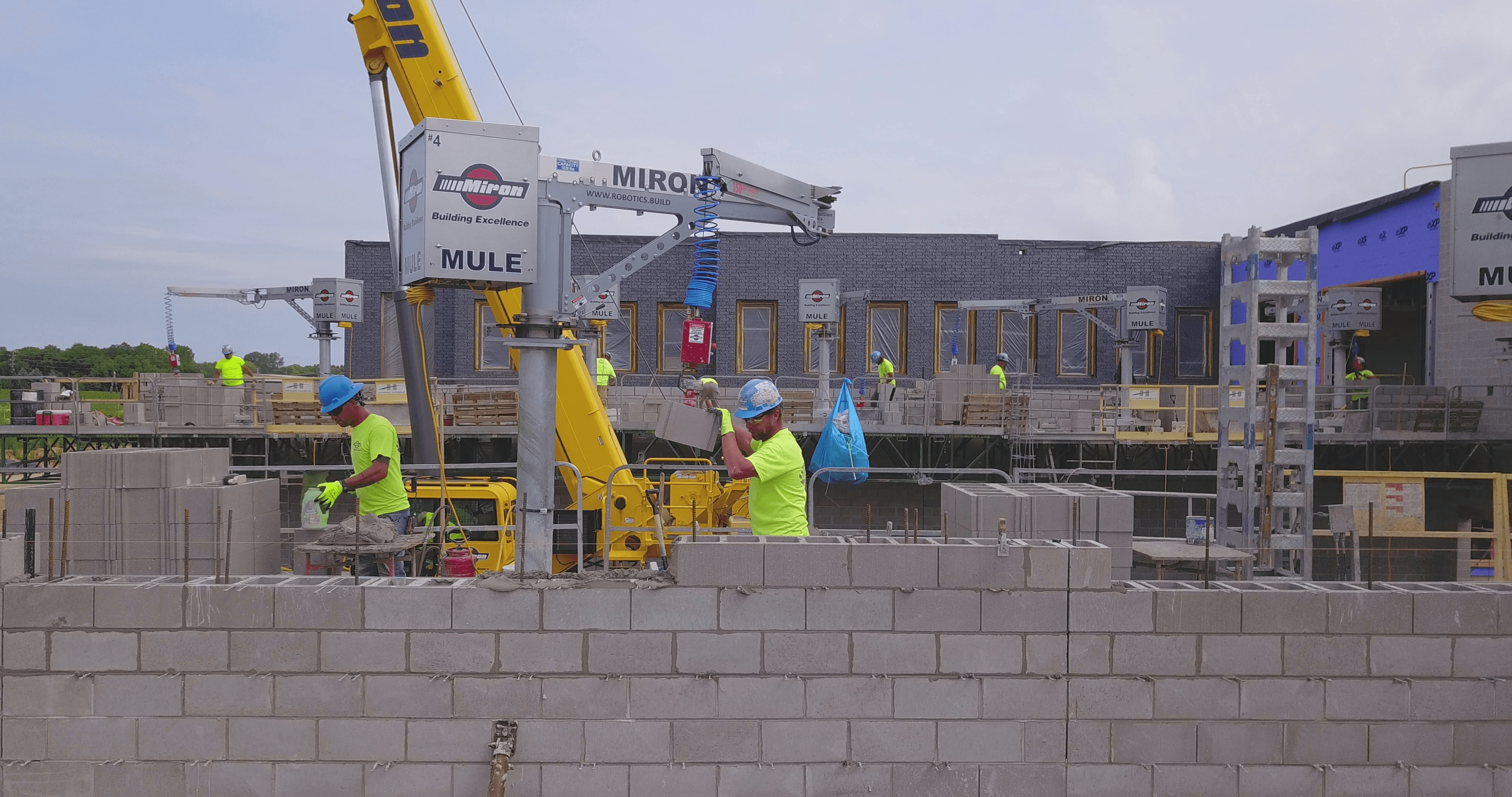

THE MULE ML150 IN ACTION.
GET EQUIPMENT FINANCING
Explore flexible financing plans from JLG Financial®. LEAF Commercial Capital, Inc., a subsidiary of M&T Bank.
SPECIFICATIONS AND CONFIGURATIONS
ML150 Arm Weight
870 lbs
ML150 Fork Pockets Weight
290 lbs
ML150 Core Weight (Arm + Forks)
1,160 lbs
5' Mast Weight
200 lbs
2.5' Mast Weight
145 lbs

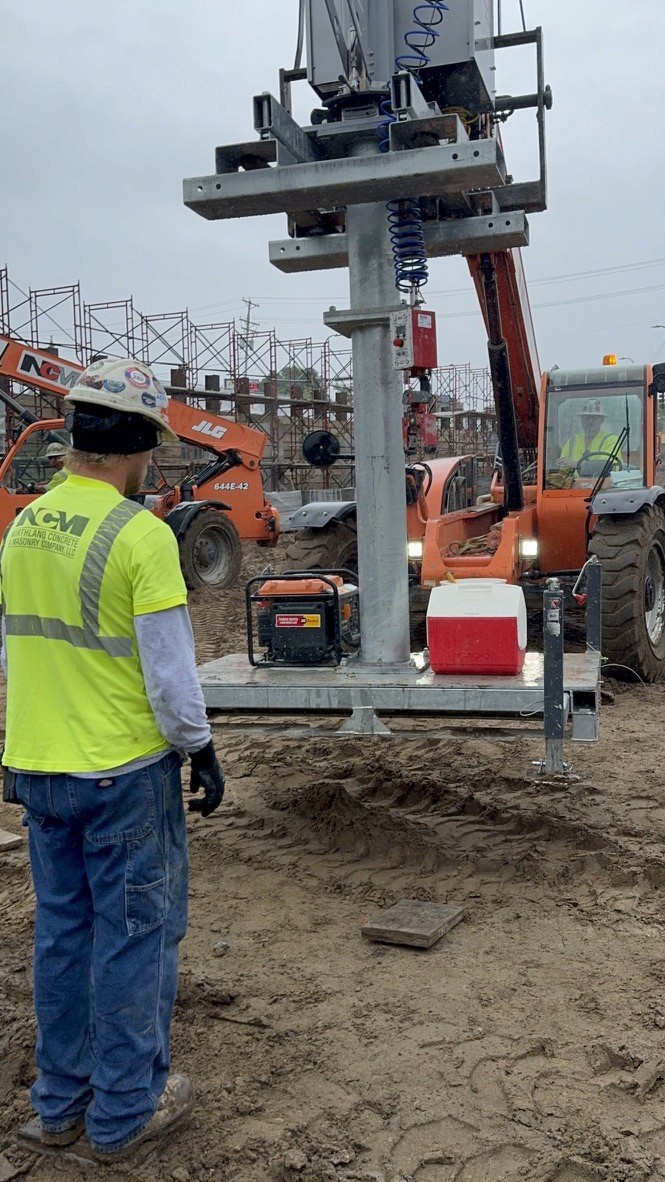

Ground Base Weight
950 lbs
Max Lifting Capacity
150 lbs*
Power
20A @ 120V AC, 60HZ
Max Free Standing
20'
Reach Radius
12'
Head Height Clearance
4'-4"
Width
2'-8"
Height
4'-2"
Length
14'-7"
Stowed Width
3'-1"
Stowed Length
8'-10"
Cable Reach (with out extension)
11'
*Capacity can be increased to 200 pounds
